Perforatrice per fori profondi

NAGEL/TBT BW-30-3000

NAGEL/TBT BW-30-3000

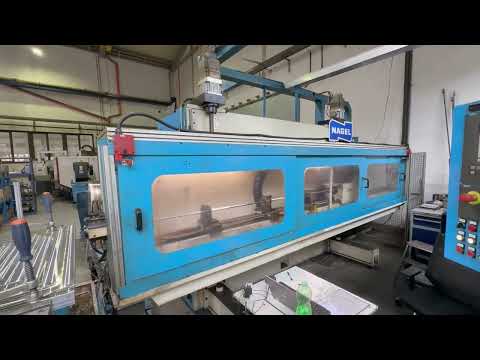

Deep Hole Drilling Machine

Year of manufacture: 2004
Control system: SIEMENS SINUMERIK 840D
Drilling depth up to 3,000 mm
Max. drilling diameter: 27 mm / min. 16 mm
Number of axes: 3
Max. feed rate: 140 mm/min
Table axis X: 950 mm
Working area in X-axis: 900 mm
Working area in Z-axis: 1,750 mm
Coolant volume: 2,400 l
Table load capacity: 4,000 kg
Cooling system type: KA-1
Table size: 3,300 x 950 mm
Feed rate up to 7,000 mm/min
Power: 7.5 kW
Speed: 650 - 6,500 rpm

Automatic central lubrication
Hydraulic drive for drill guide sleeve
Magnetic chip conveyors

All other accessories visible in the photos and video are not included in the scope of delivery and are therefore not part of this sale. The scope of delivery only includes the accessories expressly listed here, in the order confirmation, and in the invoice.
Iedpfxox Aglcj Afboa

FCA (Free Carrier, loaded on truck) D-95447 Bayreuth
packaging only
Immediate availability
Subject to prior sale / payment due immediately upon conclusion of purchase.
